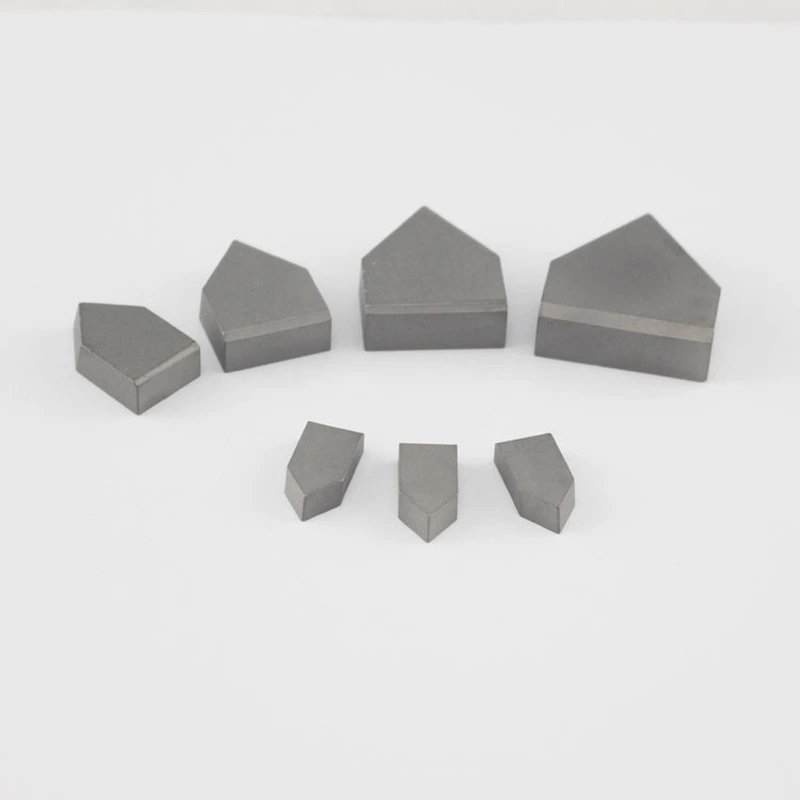

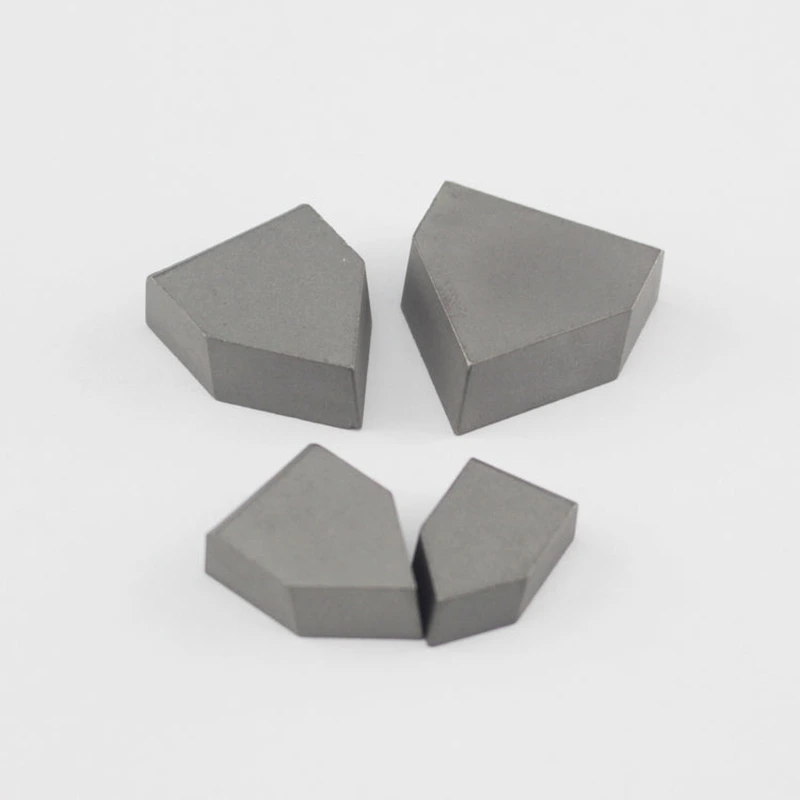

Type E, tungsten carbide cutting tools, tips as per ISO.
| 型号Type | 尺寸Dimension | |||
| L | t | s | a | |
| E4 | 10.0 | 4.0 | 2.5 | / |
| E5 | 12.0 | 5.0 | 3.0 | / |
| E6 | 14.0 | 6.0 | 3.5 | / |
| E8 | 16.0 | 8.0 | 4.0 | 9° |
| E10 | 18.0 | 10.0 | 5.0 | 9° |
| E12 | 20.0 | 12.0 | 6.0 | 9° |
| E16 | 22.0 | 16.0 | 7.0 | 9° |
| E20 | 25.0 | 20.0 | 8.0 | 9° |
| E25 | 28.0 | 25.0 | 9.0 | 9° |
| E32 | 32.0 | 32.0 | 10.0 | 9° |
