We offers a wide choice of abrasive blast nozzles made from high-quality tungsten carbide, silicon carbide

or boron carbide. Various nozzle types and jacket materials are available.

Description

Abrasive Blast Nozzles

We offers a wide choice of abrasive blast nozzles made from high-quality tungsten carbide, silicon carbide

or boron carbide. Various nozzle types and jacket materials are available.

Venturi Nozzles

Venturi bore nozzles produce a wide blast pattern and intensify abrasive velocity as much as 100% per given pressure. Venturi nozzles are the best option for increased productivity when blasting larger areas.

Long Venturi style nozzles provide approximately a 40% increase in productivity in comparison with straight bore nozzles. Additionally, abrasive consumption can be reduced by about 40%.

Double Venturi Nozzles

The double Venturi style can be regarded as two nozzles in a row with a gap and holes in between to facilitate

the entry of atmospheric air into the downward part of the nozzle. The exit segment is also wider than an ordinary nozzle. This modification increases the size of the blast pattern and minimizes a reduction in abrasive velocity.



Choice of nozzle material

Abrasive Abrasive

Air Air

Tungsten carbide (TC)

Resistant to mechanical stress. It’s best suitable for outdoor use with mineral abrasives such as slag, garnet and others.

Silicon carbide (SiC)

Light and wear resistant. Universal use with aluminum oxide, silicon carbide, steel shot or mineral slag and garnet.

Boron carbide (B4C)

Very lightweight with the longest service life. Used for aggressive abrasives such as aluminum oxide, silicon carbide, steel grit.


All values are indicative and approximate and given for nozzle comparison purposes only. Actual nozzle service life will

depend on blast media, blast pressure, media dimensions and media particle profile.





Blast nozzles PERFORMER

abrasive blast nozzles

made from high-quality

tungsten carbide (TС).





Nozzles PERFORMER 400

Performer is the latest development of high performance Venturi blast cleaning nozzles. New modern and highly wear resistant liners are equipped with a rugged and lightweight polyurethane jacket. Whether blasting with high aggressive Fused Aluminas, Silicon Carbides and Steel Grits or blasting with Expendable slag-based abrasives - in Performer nozzles range you will find the best suitable nozzle for your application.



Performer nozzles are available in five sizes to achieve maximum productivity of abrasive blast cleaning system.

You can select correct nozzle bore to suit compressed air supply and optimize blast media consumption.

Blast nozzles PERFORMER

Wear-resistant Venturi blasting nozzles made of tungsten carbide (TC). Service life: up 400 h.

Cover: Polyurethane. Thread: Aluminum, 50 mm for NHP nozzle holder. Entry size: 32 mm.

MODEL

DESCRIPTION

Performer 400-6.5

Venturi Nozzle, tungsten carbide, 6.5mm x 130mm

Performer 400-8.0

Venturi Nozzle, tungsten carbide, 8.0mm x 150mm

Performer 400-9.5

Venturi Nozzle, tungsten carbide, 9.5mm x 170mm

Performer 400-11.0

Venturi Nozzle, tungsten carbide, 11.0mm x 200mm

Performer 400-12.5

Venturi Nozzle, tungsten carbide, 12.5mm x 210mm



abrasive blast nozzles

made from high-quality

boron carbide (B4С).



Nozzles PERFORMER 1000

Performer is the latest development of high performance Venturi blast cleaning nozzles. New modern and

highly wear resistant liners are equipped with a rugged and lightweight polyurethane jacket.

Whether blasting with high aggressive Fused Aluminas, Boron Carbides and Steel Grits or blasting with

Expendable slag-based abrasives - in  Performer nozzles range you will find the best suitable nozzle

for your application. Performer nozzles are available in five sizes to achieve maximum productivity of abrasive

blast cleaning system. You can select correct nozzle bore to suit compressed air supply and optimize blast

media consumption.

Wear-resistant Venturi blasting nozzles made of boron carbide (B4C). Service life: up 1000 h.

Cover: Polyurethane. Thread: Aluminum, 50 mm for NHP nozzle holder. Entry size: 32 mm.

MODEL

DESCRIPTION

Performer 1000-6.5

Venturi Nozzle, boron carbide, 6.5mm x 130mm

Performer 1000-8.0

Venturi Nozzle, boron carbide, 8.0mm x 150mm

Performer 1000-9.5

Venturi Nozzle, boron carbide, 9.5mm x 170mm

Performer 1000-11.0

Venturi Nozzle, boron carbide, 11.0mm x 200mm

Performer 1000-12.5

Venturi Nozzle, boron carbide, 12.5mm x 210mm



Blast Nozzles CLASSIC TC Venturi Type



abrasive blast nozzles

made from high-quality

tungsten carbide (TС).

Nozzles type RTC

Wear-resistant Venturi blasting nozzles made of tungsten carbide (TC).

Venturi bore nozzles produce a wide blast pattern and intensify abrasive velocity as much as 100% per given

pressure. Venturi nozzles are the best option for increased productivity when blasting larger areas. Long Venturi

style nozzles provide approximately a 40% increase in productivity in comparison with straight bore nozzles.

Additionally, abrasive consumption can be reduced by about 40%.



Service life: up 400 h. Cover: Rubber. Thread: Rubber, 50 mm for NHP nozzle holder. Entry size: 32 mm.




MODEL

DESCRIPTION

RTC-6.5

Venturi Nozzle, tungsten carbide, 6.5mm x 130mm

RTC-8.0

Venturi Nozzle, tungsten carbide, 8.0mm x 150mm

RTC-9.5

Venturi Nozzle, tungsten carbide, 9.5mm x 170mm

RTC-11.0

Venturi Nozzle, tungsten carbide, 11.0mm x 200mm

RTC-12.5

Venturi Nozzle, tungsten carbide, 12.5mm x 210mm

Nozzles type DVTC



Wear-resistant Double Venturi blasting nozzles made of tungsten carbide (TC).

The double Venturi style can be regarded as two nozzles in a row with a gap and holes in between to facilitate the

entry of atmospheric air into the downward part of the nozzle. The exit segment is also wider than an ordinary

nozzle. This modifi cation increases the size of the blast pattern and minimizes a reduction in abrasive velocity.

Service life: up 400 h. Cover: Aluminum / rubber. Thread: Aluminum, 50 mm for NHP nozzle holder.

Entry size: 32 mm.



MODEL

DESCRIPTION

DVTC-6.5

Double Venturi Nozzle, tungsten carbide, 6.5mm x 130mm

DVTC-8.0

Double Venturi Nozzle, tungsten carbide, 8.0mm x 150mm

DVTC-9.5

Double Venturi Nozzle, tungsten carbide, 9.5mm x 170mm

DVTC-11.0

Double Venturi Nozzle, tungsten carbide, 11.0mm x 200mm

DVTC-12.5

Double Venturi Nozzle, tungsten carbide, 12.5mm x 210mm

Blast Nozzles CLASSIC TC Short Type

abrasive blast nozzles

made from high-quality

tungsten carbide (TС).




Nozzles type STC

Wear-resistant short Venturi blasting nozzles made of tungsten carbide (TC). Service life: up 400 h.

Cover: Rubber. Thread: Rubber, 50 mm for NHP nozzle holder. Entry size: 25 mm.

MODEL

DESCRIPTION

STC-5.0

Short Venturi Nozzle, tungsten carbide, 5.0mm x 80mm

STC-6.5

Short Venturi Nozzle, tungsten carbide, 6.5mm x 80mm

STC-8.0

Short Venturi Nozzle, tungsten carbide, 8.0mm x 80mm

STC-9.5

Short Venturi Nozzle, tungsten carbide, 9.5mm x 80mm

STC-11.0

Short Venturi Nozzle, tungsten carbide, 11.0mm x 80mm

STC-12.5

Short Venturi Nozzle, tungsten carbide, 12.0mm x 80mm



Nozzles type MTC

Wear-resistant short Venturi blasting nozzles made of tungsten carbide (TC). Service life: up 400 h.

Cover: aluminum. Thread: aluminum, 50 mm for NHP nozzle holder. Entry size: 25 mm.

MODEL

DESCRIPTION

MTC-5.0

Short Venturi Nozzle, tungsten carbide, 5.0mm x 80mm

MTC-6.5

Short Venturi Nozzle, tungsten carbide, 6.5mm x 80mm

MTC-8.0

Short Venturi Nozzle, tungsten carbide, 8.0mm x 80mm

MTC-9.5

Short Venturi Nozzle, tungsten carbide, 9.5mm x 80mm

MTC-11.0

Short Venturi Nozzle, tungsten carbide, 11.0mm x 80mm

MTC-12.5

Short Venturi Nozzle, tungsten carbide, 12.0mm x 80mm

Blast Nozzles CLASSIC TC Stick-up Type



Nozzles type GTC

Wear-resistant Venturi type hose insert nozzles made of tungsten carbide (TC). Special designed for using with

blast hose ID=25 mm. Service life: up to 400 h. Jacket: Aluminum.

MODEL

DESCRIPTION

GTC-5.0

Short Venturi Nozzle, tungsten carbide, 5.0mm x 100mm

GTC-6.5

Short Venturi Nozzle, tungsten carbide, 6.5mm x 100mm

GTC-8.0

Short Venturi Nozzle, tungsten carbide, 8.0mm x 100mm

Nozzles type HTC

Wear-resistant Venturi type hose insert nozzles made of tungsten carbide (TC). Special designed for using with

blast hose ID=32 mm. Service life: up to 400 h. Jacket: Aluminum.

MODEL

DESCRIPTION

HTC-6.5

Short Venturi Nozzle, tungsten carbide, 6.5mm x 120mm

HTC-8.0

Short Venturi Nozzle, tungsten carbide, 8.0mm x 120mm

HTC-9.5

Short Venturi Nozzle, tungsten carbide, 9.5mm x 120mm

HTC-11.0

Short Venturi Nozzle, tungsten carbide, 11.0mm x 120mm

HTC-12.5

Short Venturi Nozzle, tungsten carbide, 12.0mm x 120mm

Blast Nozzles CLASSIC B4C Venturi Type

abrasive blast nozzles

made from high-quality

boron carbide (B4С).



Nozzles type DVBC

Wear-resistant Venturi blasting nozzles made of boron carbide (В4С).

The double Venturi style can be regarded as two nozzles in a row with a gap and holes in between to facilitate the

entry of atmospheric air into the downward part of the nozzle. The exit segment is also wider than an ordinary

nozzle. This modification increases the size of the blast pattern and minimizes a reduction in abrasive velocity.



Service life —up to 1000 h.

Cover: Aluminum /Polyurethane protector.

Thread: Aluminum, 50 mm for NHP nozzle

holder. Entry size: 32 mm.

MODEL

DESCRIPTION

DVBC-6.5

Double Venturi Nozzle, tungsten carbide, 6.5mm x 130mm

DVBC-8.0

Double Venturi Nozzle, tungsten carbide, 8.0mm x 150mm

DVBC-9.5

Double Venturi Nozzle, tungsten carbide, 9.5mm x 170mm

DVBC-11.0

Double Venturi Nozzle, tungsten carbide, 11.0mm x 200mm

DVBC-12.5

Double Venturi Nozzle, tungsten carbide, 12.5mm x 210mm



Blast Nozzles CLASSIC B4C Stick-up Type



abrasive blast nozzles

made from high-quality

boron carbide (B4С).


Nozzles type GBC

Wear-resistant Venturi blasting nozzles made of boron carbide (B4C). Special designed for using with blast

hose ID=25 mm. Service life: up to 1000 h. Cover: Aluminum.

MODEL

DESCRIPTION

GBC-5.0

Short Venturi Nozzle, Boron carbide, 5.0mm x 100mm

GBC-6.5

Short Venturi Nozzle,Boron carbide, 6.5mm x 100mm

GBC-8.0

Short Venturi Nozzle, Boron carbide, 8.0mm x 100mm



Nozzles type HBC

Wear-resistant Venturi blasting nozzles made of boron carbide (B4C). Special designed for using with blast

hose ID=32 mm. Service life: up to 1000 h. Cover: Aluminum.



MODEL

DESCRIPTION

HBC-6.5

Short Venturi Nozzle, Boron carbide, 6.5mm x 120mm

HBC-8.0

Short Venturi Nozzle, Boron carbide, 8.0mm x 120mm

HBC-9.5

Short Venturi Nozzle, Boron carbide, 9.5mm x 120mm

HBC-11.0

Short Venturi Nozzle, Boron carbide, 11.0mm x 120mm

HBC-12.5

Short Venturi Nozzle, Boron carbide, 12.0mm x 120mm

Internal Pipe Blast Nozzles 360°


Internal pipe blasting nozzles type PTC-360 are designed to blast clean the interior of pipes ranging in size from 2.5 to 5I.D. The nozzle connected an abrasive blast machine in place of a standard nozzle. In operation, the PTC-360 nozzle directs the air/abrasive mixture at a deflection tip. This tip causes the blast pattern to fan out into a wide, circular pattern, which cleans the inside of the pipe as the nozzle is passed through. Made from tungsten carbide (TC). Fits all nozzle holders.



Characteristics

Highly wear-resistant angle type blasting nozzles. Made from tungsten carbide (TC). Lifetime: Up to 400 h.

Jacket: Aluminum.Thread: Aluminum, 50 mm for NHP nozzle holder.

MODEL

DESCRIPTION

PTC-360°

Internal pipe blasting nozzle, tungsten carbide 8.0mm x 75mm


Deflection tip for PTC-360, tungsten carbide

Angle Blast Nozzles ATC



Angle nozzles are used for getting inside tight or hard to reach places like corners,

behind flanges or inside pipes. ATC type angle nozzles are compact and shoot out

the abrasive at 45° angles. Made from tungsten carbide (TC). Fits all

nozzle holders.



Characteristics

Highly wear-resistant angle type blasting nozzles. Made from tungsten carbide (TC). Lifetime: Up to 400 h.

Jacket: Rubber. Thread: 50-mm coarse rubber thread.



MODEL

DESCRIPTION

ATC-5.0-1

Angle nozzles, tungsten carbide , bore 1x45°

ATC-6.5-1

Angle nozzles, tungsten carbide , bore 1x45°

ATC-8.0-1

Angle nozzles, tungsten carbide , bore 1x45°

ATC-9.5-1

Angle nozzles, tungsten carbide , bore 1x45°

ATC-5.0-2

Angle nozzles, tungsten carbide , bore 2x45°

ATC-6.5-2

Angle nozzles, tungsten carbide , bore 2x45°

ATC-8.0-2

Angle nozzles, tungsten carbide , bore 2x45°

ATC-9.5-2

Angle nozzles, tungsten carbide , bore 2x45°

ATC-5.0-3

Angle nozzles, tungsten carbide , bore 3x45°

ATC-6.5-3

Angle nozzles, tungsten carbide , bore 3x45°

ATC-8.0-3

Angle nozzles, tungsten carbide , bore 3x45°

ATC-9.5-3

Angle nozzles, tungsten carbide , bore 3x45°



Bending Blast Nozzles BTC



Bending nozzles are used for getting inside tight or hard to reach places like corners,

behind flanges or inside pipes. BTC type bending nozzles are compact and shoot out

the abrasive at 45° angles. Made from tungsten carbide (TC). Fits all

nozzle holders.



Characteristics

Highly wear-resistant angle type blasting nozzles. Made from tungsten carbide (TC). Lifetime: Up to 400 h.

Jacket: Aluminum / Polyurethane protector Thread: 50-mm coarse rubber thread.

MODEL

DESCRIPTION

BTC-6.5

Bending nozzles, tungsten carbide/boron carbide, angle 45°, 6.5mm x 125mm

BTC-8.0

Bending nozzles, tungsten carbide/boron carbide, angle 45°, 8.0mm x 125mm

BTC-9.5

Bending nozzles, tungsten carbide/boron carbide, angle 45°, 9.5mm x 125mm

BTC-11.0

Bending nozzles, tungsten carbide/boron carbide, angle 45°, 11.0mm x 125mm

BTC-12.5

Bending nozzles, tungsten carbide/boron carbide, angle 45°,12.5mm x 125mm



Short Blast Nozzles NTC

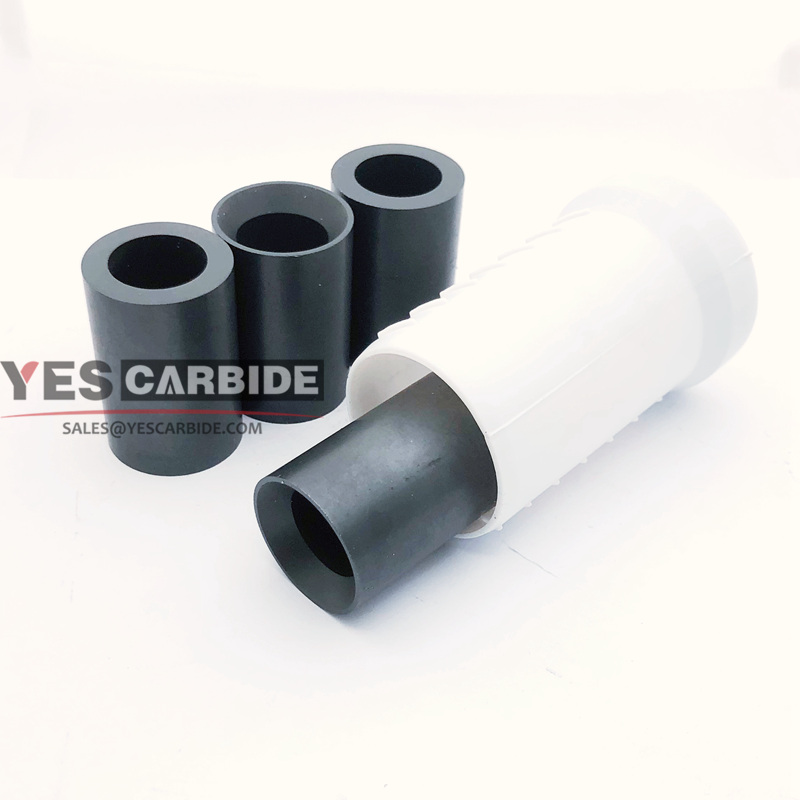

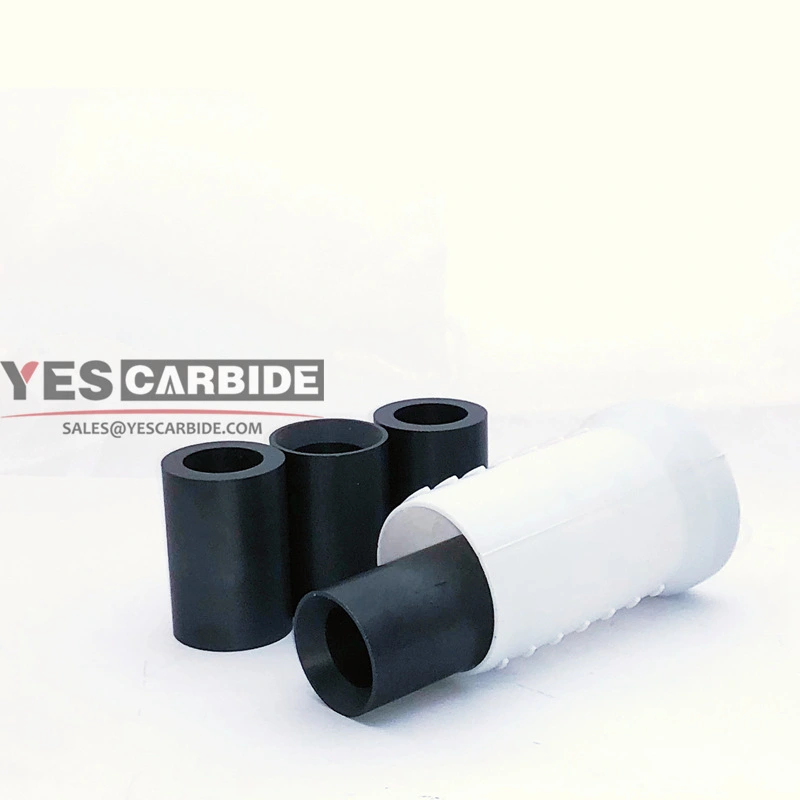

Wear-resistant short Venturi blasting nozzles made of tungsten carbide (TC).

Characteristics

Service life - up to 400 h. Cover: Aluminum Thread: Aluminium, .” for NHP-0 nozzle holder.

MODEL

DESCRIPTION

NTC-3.5

Short Venturi Nozzle, tungsten carbide/boron carbide, 3.5mm x 45mm

NTC-5.0

Short Venturi Nozzle, tungsten carbide/boron carbide, 5.0mm x 45mm

NTC-6.5

Short Venturi Nozzle, tungsten carbide/boron carbide, 6.5mm x 45mm

NTC-8.0

Short Venturi Nozzle, tungsten carbide/boron carbide, 8.0mm x 45mm

Water Injection Blast Attachment WBA

R water blast equipment has been specifically designed to meet growing customer demand for

a multi-purpose cleaning system that is fast, economical and environment-friendly.



Field of application

Dust-reducing high-performance cleaning of steel, stone and concrete surfaces. Cleaning up to grade

SA-3.0. Performance up to 20% higher than dry blasting.

Designed to work with

any water matching abrasives, max. grain size 3,5 mm. Universal Water Blast Attachment. Sleeve made

from high grade tungsten carbide. Fits all R blast nozzles. Jacket: Aluminum. Thread: 50-mm

coarse aluminum thread.



Model

Description

WBA

Water Blast Attachment, tungsten carbide sleeve



Water Injection Blast Nozzles WBN



R water blast equipment has been specifically designed to meet growing customer demand for

a multi-purpose cleaning system that is fast, economical and environment-friendly.

Field of application

Dust-reducing high-performance cleaning of steel, stone and concrete surfaces. Cleaning up to grade

SA-3.0. Performance up to 20% higher than dry blasting.



Designed to work with any water matching abrasives, max. grain size 3,5 mm. Water blast nozzles for wet blast applications. Made

from high grade tungsten carbide. Jacket: Aluminum. Thread: 50-mm coarse aluminum thread.

Model

DESCRIPTION

WBN-MINI-5.0

Water blast nozzle, boron carbide, 5.0mm, thread 3/4 for NHP-0

WBN-MINI-6.5

Water blast nozzle, boron carbide, 6.5mm, thread 3/4 for NHP-0

WBN-MINI-8.0

Water blast nozzle, boron carbide, 8.0mm, thread 3/4 for NHP-0

WBN-6.5

Water blade nozzle, tungsten carbide, dia.6.5, entry 32mm

WBN-8.0

Water blade nozzle, tungsten carbide, dia.8.0, entry 32mm

WBN-9.5

Water blade nozzle, tungsten carbide, dia.9.5, entry 32mm




Related Product

Chat with us
